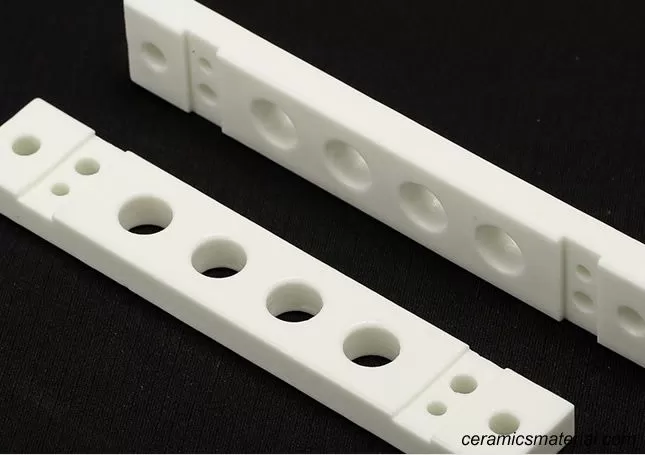

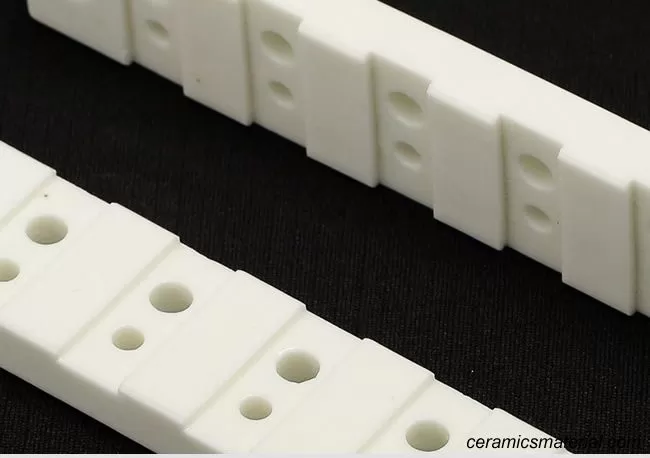

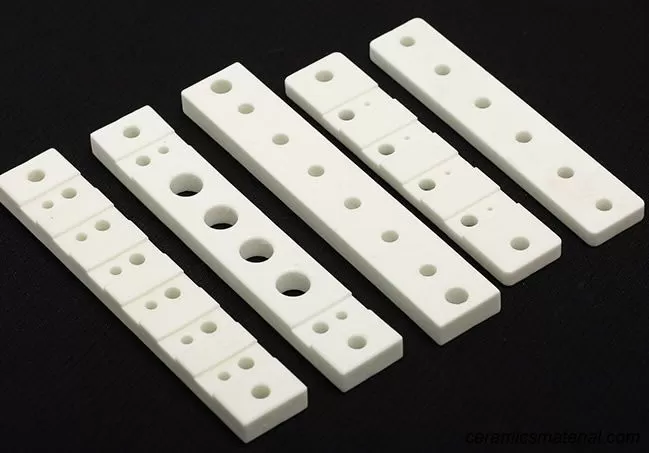

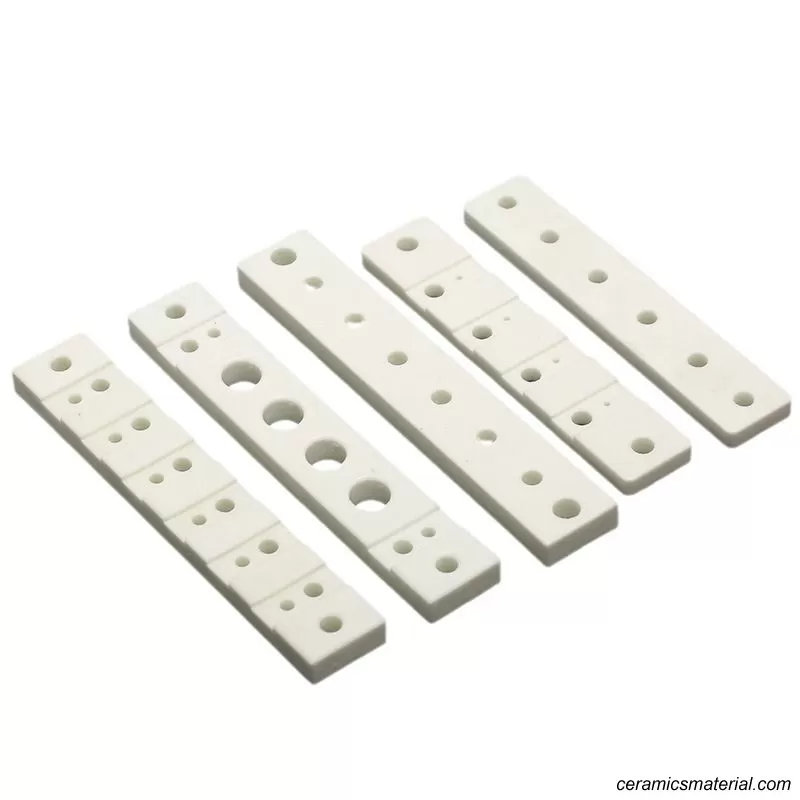

95, 99 high frequency precision alumina ceramic porous electric heating ceramic plate
- Category:Oxide Ceramics
- FOB Price:Get Latest Price Now
- Quality Guarantee:12 Months unless specified otherwise
- Place of Origin:China
- Custom description:Customizable production based on drawings
China 95, 99 high frequency precision alumina ceramic porous electric heating ceramic plate Introduction:
Specifications
- Brand Name
- OEM
- HS Code
- 6914100000
- Unit
- PCE(Pieces)
- Customed Made
- Yes
- MOQ
- 10
- Delivery Period
- 5 days
Description
Alumina precision ceramics is a ceramic material based on aluminum oxide (AL) and is used in thick film integrated circuits.
Alumina precision ceramics have good conductivity, mechanical strength and high temperature resistance. It should be noted that ultrasonic cleaning is required.
Alumina ceramics have a variety of uses to meet daily and special performance needs.
95 aluminum oxide is mainly used as parts that are not prone to wear.
|
Ceramic properties table |
||||
|
|
Name |
99 porcelain |
95 porcelain |
Zirconia |
|
|
Main ingredients |
Al₂O₃≥99% |
Al₂O₃≥95% |
ZrO₃≥94% |
|
Physical properties |
density |
3.85 |
3.6 |
5.9 |
|
Water absorption% |
0 |
0 |
0 |
|
|
Sintering temperature℃ |
1690 |
1670 |
1650 |
|
|
Material properties |
HardnessHV |
1700 |
1700 |
1700 |
|
Flexural strength 4pt |
>3500 |
>3500 |
>3500 |
|
|
Compressive strengthKgf/cm² |
30000 |
30000 |
30000 |
|
|
Thermal properties |
Maximum operating temperature℃ |
1500 |
1400 |
1600 |
|
Thermal expansion coefficient |
8 |
7.8 |
10 |
|
|
10-6/℃ |
||||
|
0-1000℃ |
||||
|
Thermal shock resistance T(°C) |
200 |
220 |
350 |
|
|
Thermal conductivity W/m.k |
31 |
22 |
3 |
|
|
Electrical characteristics |
Volume resistivity 2.cm |
>1012 |
>1012 |
>1012 |
|
Insulation breakdown strength KT/m |
18 |
16 |
15 |
|
|
Dielectric constant 1MHZ(E) |
92.-10.5 |
9.0-10 |
12.5 |
|
Service
Welcome to consult China 95, 99 high frequency precision alumina ceramic porous electric heating ceramic plate suppliers. We have more than 10 years of foreign trade supply experience and provide you with high-quality precision ceramics customized supply services and wholesale preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
