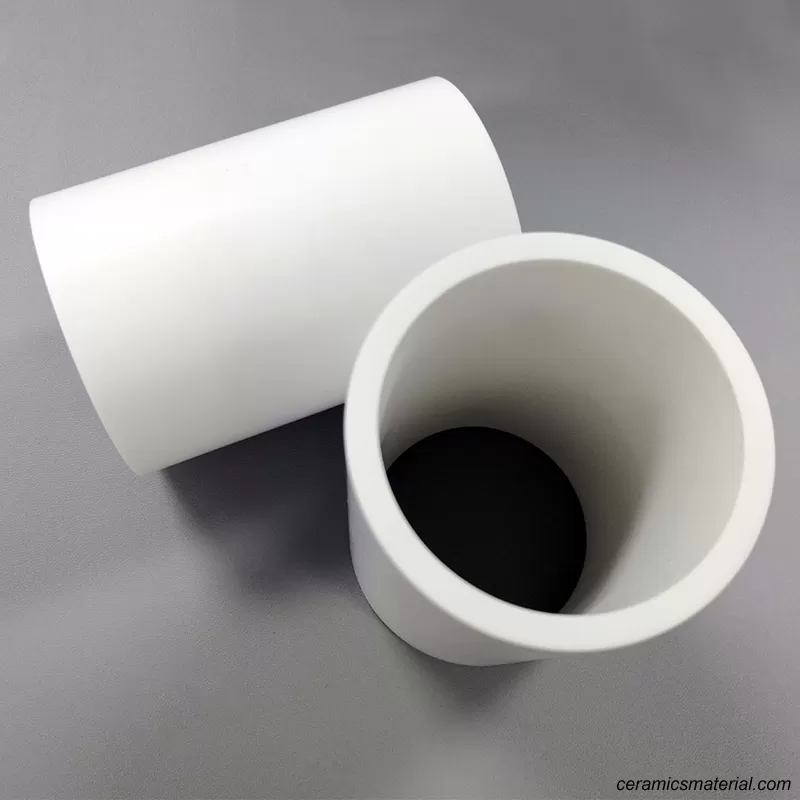

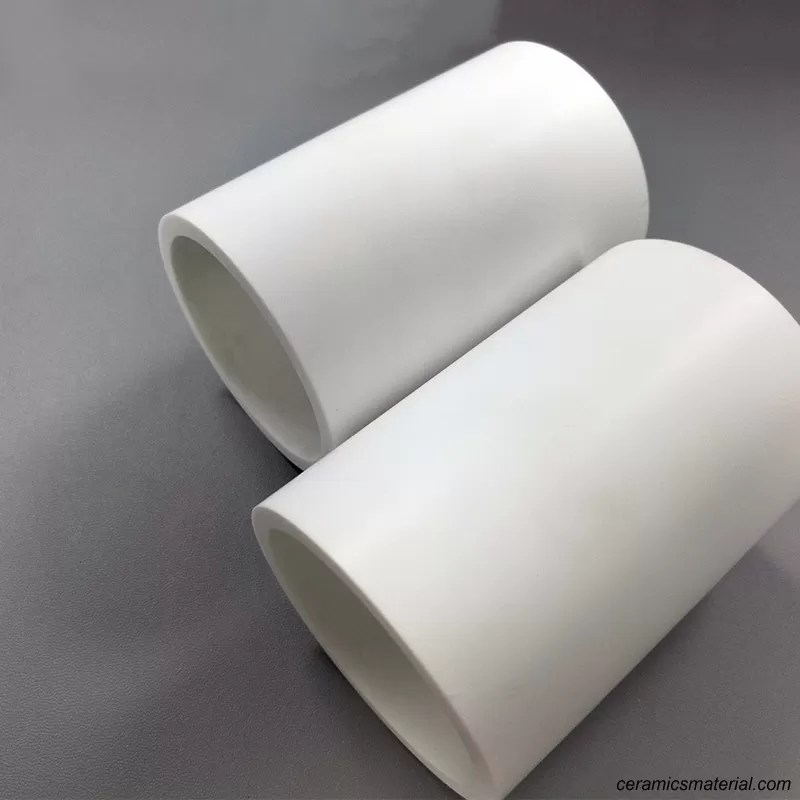

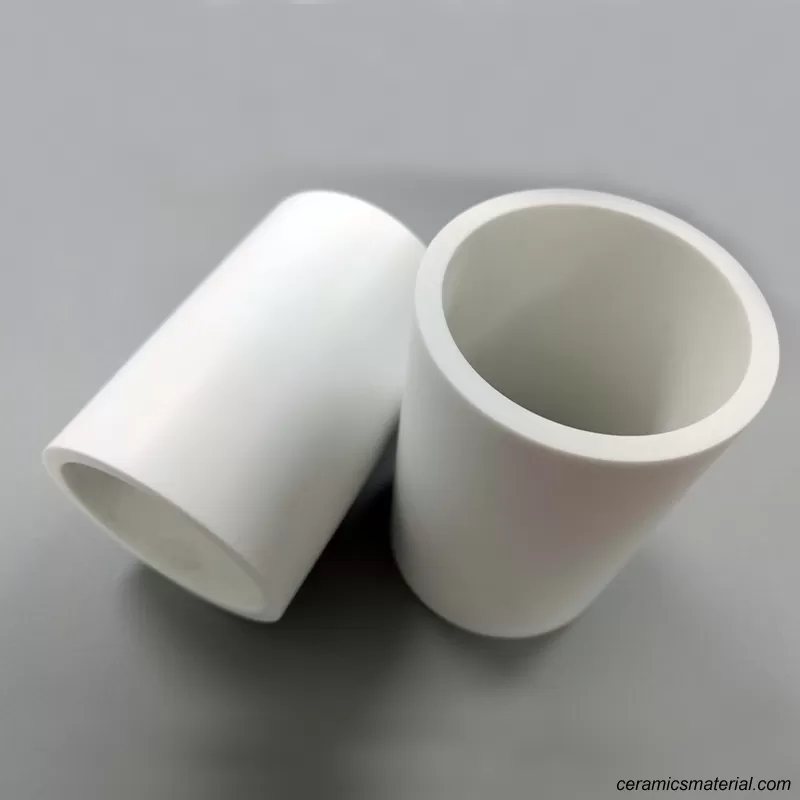

95 alumina ceramic tube

Advantages of 95 alumina ceramic tube

95 alumina ceramic tubes feature extremely high hardness and wear resistance, low erosion levels, high temperature resistance, corrosion resistance and biological inertness, and are often used in precision sealing applications such as pumps and pistons. Its high temperature stability makes it an excellent high temperature ceramic material. It is the most commonly used type of high-grade ceramic, with purity ranging from 95%-99.5%.

Applications of Alumina

Alumina ceramics are characterized by extremely high hardness and wear resistance, low erosion levels, high temperature resistance, corrosion resistance and biological inertness. Therefore, Al2O3 ceramic products are ideal for many industries, such as:

electrical wires and conduits;

Machinery Seal;

machine parts;

High temperature electrical insulators;

High voltage insulators;

Electronic component substrates;

roller and ball bearings;

wear-resistant lining;

semiconductor parts;

Precision shafts and shafts in high wear environments.

Alumina ceramic properties

1. Excellent electrical insulation (1×10 14 ~ 1×10 15 Ω cm);

2. Medium to ultra-high mechanical strength (300 to 630 MPa);

3. Extremely high compressive strength (2000 to 4000 MPa);

4. High hardness (15 to 19 GPA);

5. Medium thermal conductivity (20 to 30 W/MK);

6. High corrosion and wear resistance;

7. Good grinding performance;

8. Low density (3.75 to 3.95 g/cm3);

9. Without mechanical load, the operating temperature is 1000 to 1500°C;

10. Biological inertia and food compatibility.
