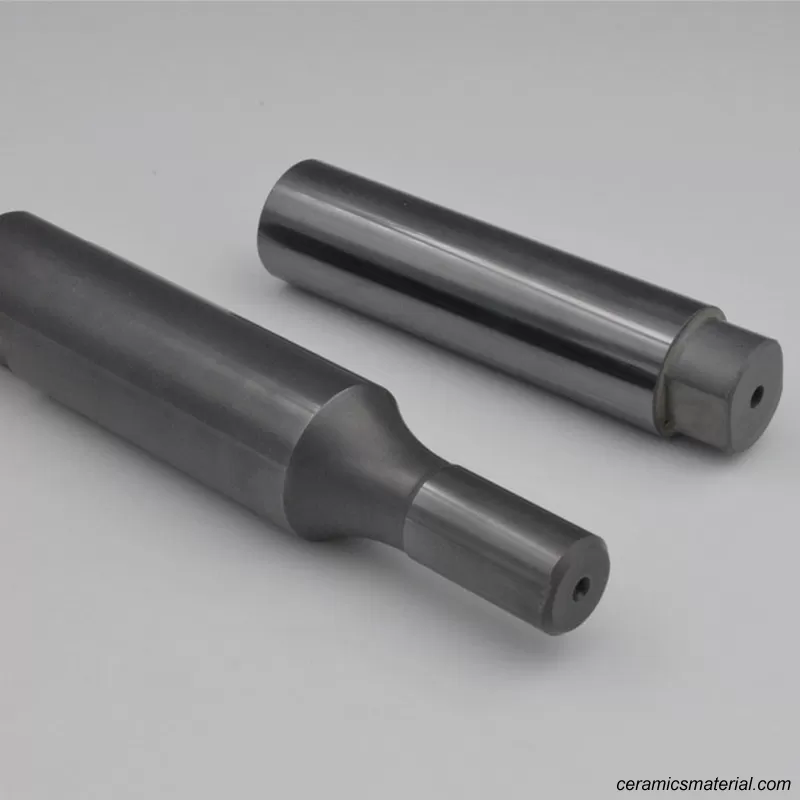

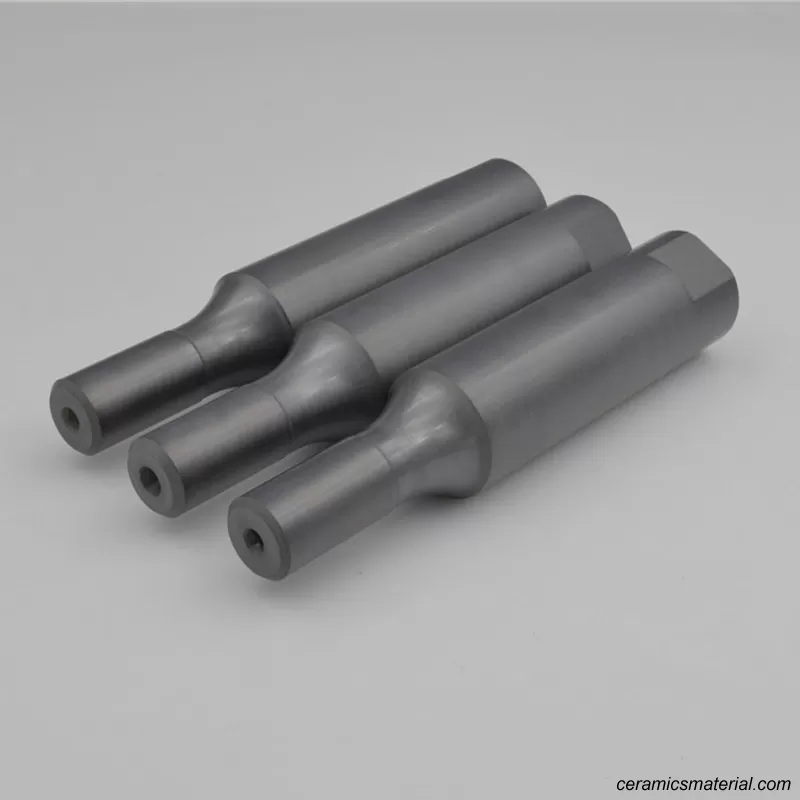

Silicon carbide ceramic cylindrical structural parts

Material properties of silicon carbide ceramic cylindrical structural parts

1.Shape and size can be customized according to drawings

2. Extremely high hardness (HV10): 22.2 (Gpa)

3. Extremely low density (3.10-3.20 g/cm³)

4. Silicon carbide can even maintain its strength at temperatures up to 1400°C

5. Due to its chemical and physical stability, silicon carbide has high hardness and corrosion resistance.

6. High Young’s modulus (380 to 430 MPa)

7. Corrosion and wear resistance even at high temperatures

8. Toxicological safety

Structural and dimensional customization accuracy of silicon carbide structural parts

1. The best shape accuracy can reach ±0.005mm, usually ±0.05mm;

2. The internal structure accuracy should preferably reach ±0.01mm, and generally within ±0.05mm;

3. Standard or non-standard threads above M2.5 can be processed according to needs;

4. The best hole position accuracy can reach 0.005mm, and generally within 0.01mm;
