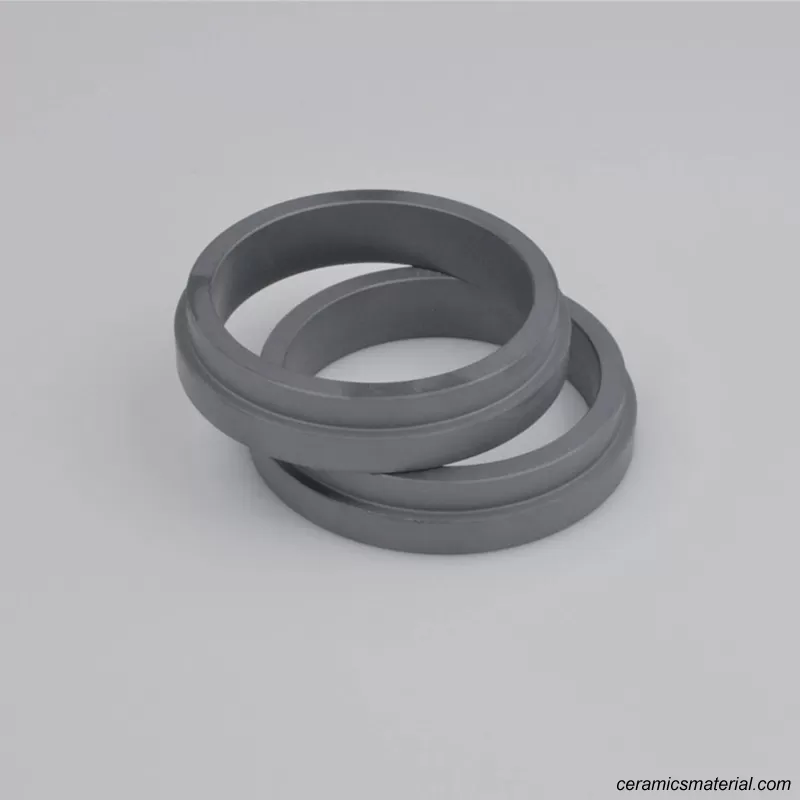

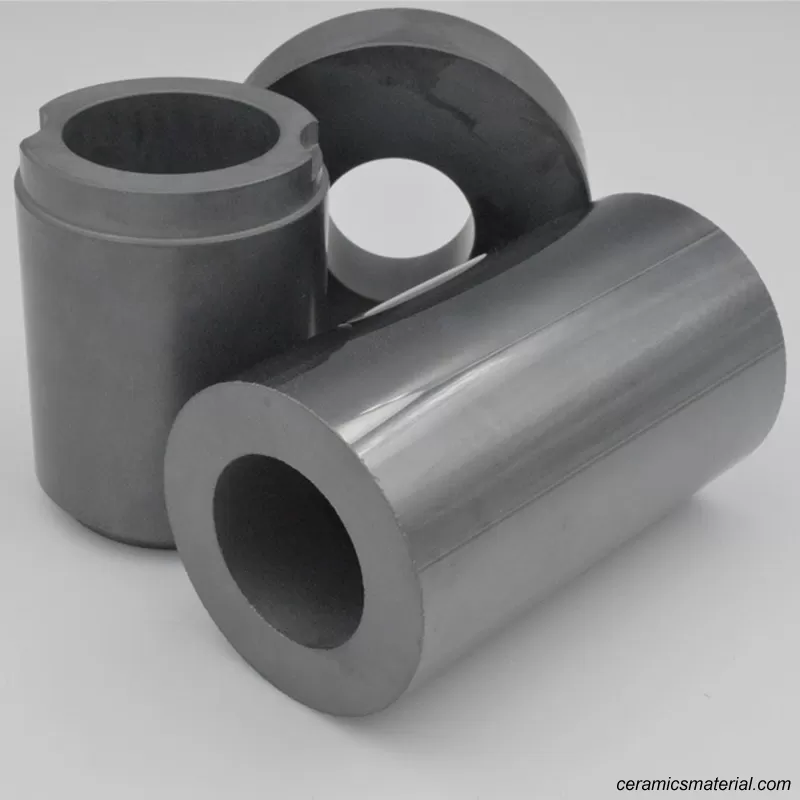

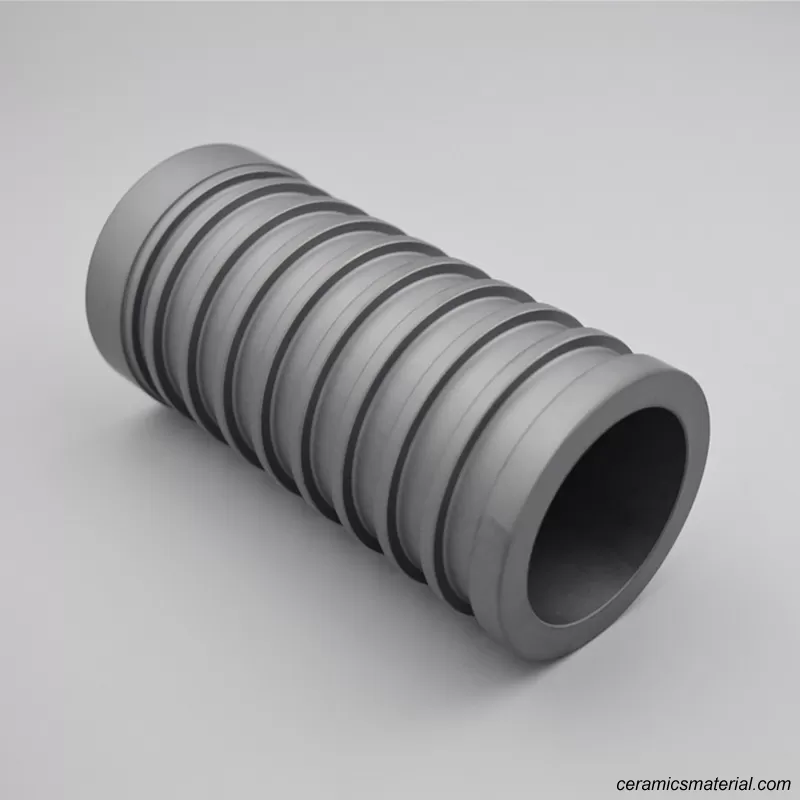

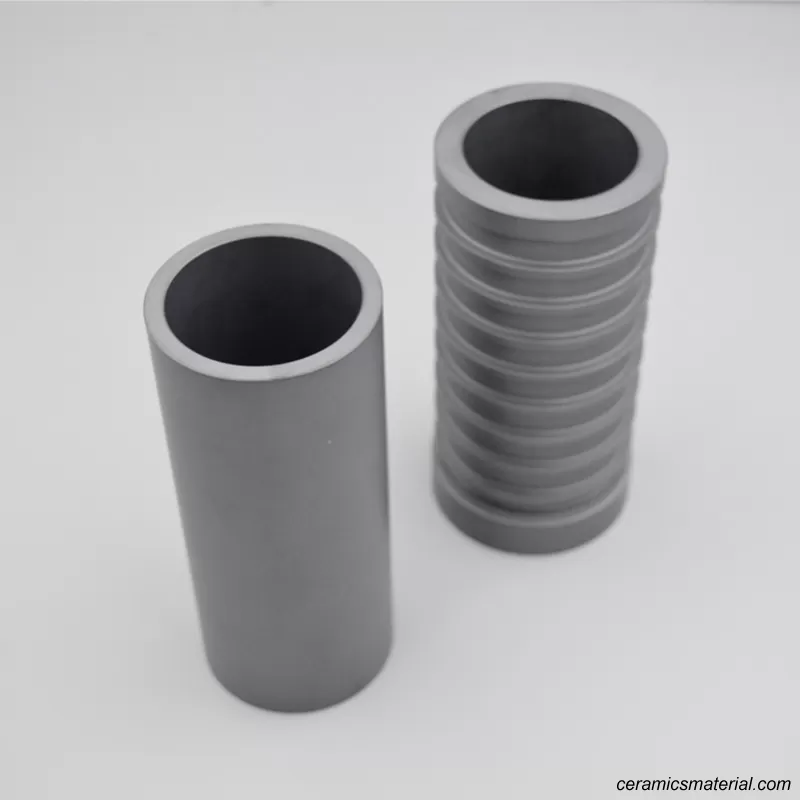

Silicon carbide ceramic sleeve

Material properties of silicon carbide ceramic sleeve structural parts

1.Shape and size can be customized according to drawings

2. Extremely high hardness (HV10): 22.2 (Gpa)

3. Extremely low density (3.10-3.20 g/cm³)

4. Silicon carbide can even maintain its strength at temperatures up to 1400°C

5. Due to its chemical and physical stability, silicon carbide has high hardness and corrosion resistance.

6. High Young’s modulus (380 to 430 MPa)

7. Corrosion and wear resistance even at high temperatures

8. Toxicological safety

Structural and dimensional customization accuracy of silicon carbide ceramic sleeves

1. The structure and size of silicon carbide structural parts can be customized according to needs;

2. The outer circle accuracy can best reach ±0.005mm, and generally is ±0.01mm;

3. The inner hole structural accuracy should preferably reach ±0.005mm, and generally within ±0.01mm;

4. The best roundness can reach 0.002mm, usually within 0.01mm;
